The Org Chart widget displays the employees in your organization and the relationships between them.
Usage Example
The Org Chart widget visually presents a company's organizational structure in a clear, tree-style diagram. This helps employees quickly see:
- Who they report to
- How departments are connected
- Where their team fits in the broader hierarchy
Configuration

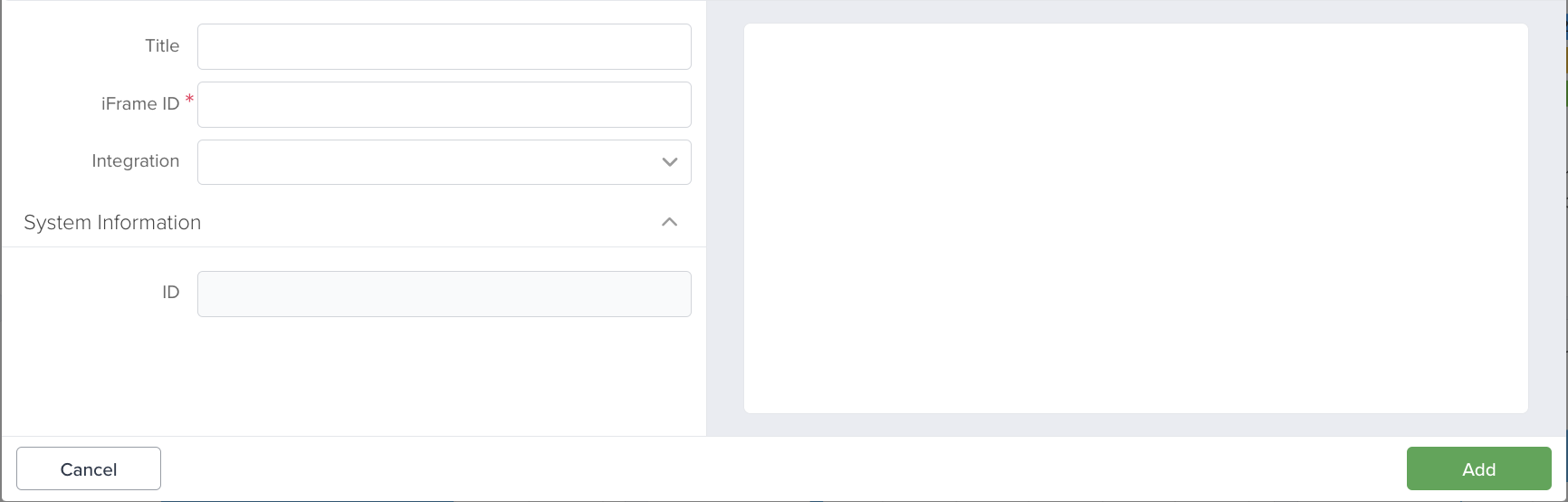

As you configure your widget you will see the preview panel to the right update in real-time to reflect the changes you've made.
Title
Create a Title for the widget. It will appear in the top left-hand corner of the preview panel.
iFrame
An iFrame (inline frame) enables you to display content from another source in Servis.ai without having to redirect users to a different page. Paste the URL of the other source in this field.
Note: The website containing the original source will need to communicate with Servis.ai using the Servis.ai Applet Library. Using the Applet Library, the external website will be able to query and modify your Servis.ai tenant.
Integration
This field is used to designate the integration that is the source of the iFrame content in Servis.ai. Options will appear as a dropdown menu containing all your Servis.ai integrations.
Add
Once the Org Chart widget is configured, click the Add button in the bottom right corner of the preview panel.
